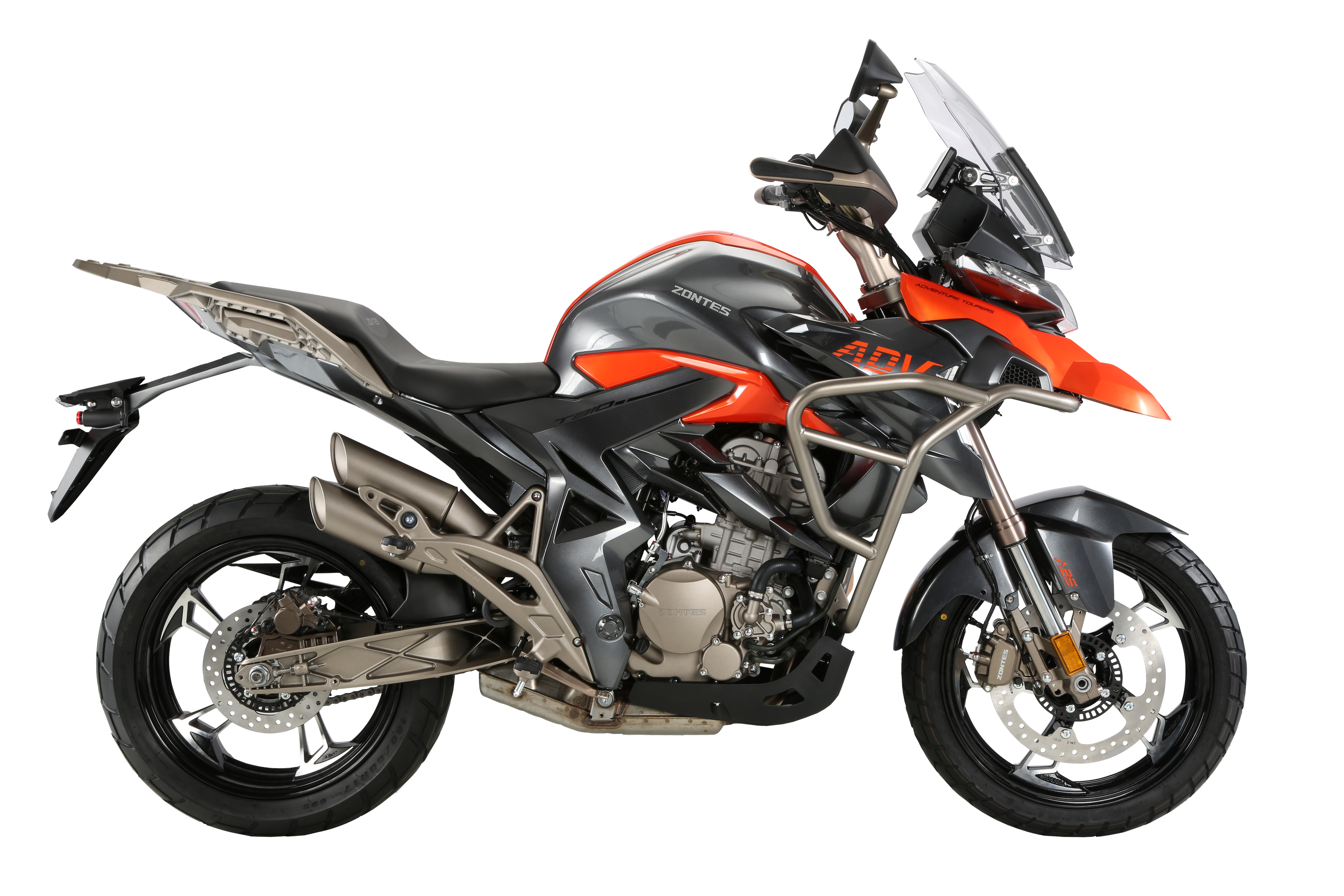

Get geared up for rides overflowing with thrills, twists and turns with ZT310T1. This adventure motorcycle has everything you need for smooth performance, durability and comfort.
Its low heights of only 795mm and 830mm cater to Asians, especially Malaysians whose average heights are 164.7cm (male) and 153.3cm (female).
02
TFT Full Colour Intelligent Digital Screen Instrument
TFT Full Colour Intelligent Digital Screen Instrument
03
High Power Magneto
High Power Magneto
The power generation of the high power magneto is increased, the temperature rise is reduced, the service life is longer and the weight of the magneto rotor is reduced. Engine vibration and power output are boosted. The battery matched with the high power magneto has greater storage capacity.
04
Sliding Clutch
Sliding Clutch
05
EFI System
EFI System
Equivalent to a comprehensive optimisation of fuel economy and operating quality, this cutting-edge system integrates headlight control, fan control, as well as sports and fuel-saving mode.
06
New Cushion Seat Leather
New Cushion Seat Leather
This soft higher-grade leather material elevates comfort during short and long-distance travels, whether when accelerating or braking.
07
Tyre Pressure Monitoring System
Tyre Pressure Monitoring System
In the event of abnormal tyre pressure, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. It effectively prevents flat tyres, increases safety, prevents tyre damage at low air pressure, extends tyre lifespan, reduces fuel consumption and maintains the best handling performance.
08
Additional Rear Fender Bracket
Additional Rear Fender Bracket
It effectively blocks the muddy water splashed up by the rear wheel, hence making riding in the rain more enjoyable.
09
New Handguard Design
New Handguard Design
Its larger area, combined with the new aluminium alloy forged bracket enhance the windshield effect.
10
Aluminium Top & Side Boxes Of High Quality
Aluminium Top & Side Boxes Of High Quality
These are must-have accessories for long-distance travels and adrenaline seekers.
11
Sport Rims Edition
Sport Rims Edition
12
Anti-scald Exhaust Pipe
Anti-scald Exhaust Pipe
13
Electronic Adjustable Windshield
Electronic Adjustable Windshield
14
Integral Bumper
Integral Bumper
It helps prevent serious damage to the bike which is built for adventure.
15
Dry Sump Engine
Dry Sump Engine
It helps prevent serious damage to the bike which is built for adventure.
16
ABS
ABS
17
Keyless Remote Control System
Keyless Remote Control System
18
Fuel Saving & Sporting Dual Mode
Fuel Saving & Sporting Dual Mode
19
Electronic Fuel Tank Lock
Electronic Fuel Tank Lock
Power System
Cylinder NumberSingle Cylinder
Camshaft SystemDouble-Top Camshaft (DOHC)
Bore X Stroke (mm)80 x 62
Cooling SystemLiquid Cooling
Compression Ratio12.5 : 1
Displacement (ml)312
Fuel injection systemDelphi Fuel Injection
Ignition SystemElectric Ignition
Maximum Power (kW/rpm)26 / 9,500
Maximum Torque (N.m/rpm)30 / 7,500
TransmissionConstant Mesh 6-section Transmission
ClutchWet Type Multi-Pieces
Fuel Consumption (L/km)3.2 / 100
Length (mm)2,021
Width (mm)850
Height (mm)1,342 | 1,360
Wheelbase (mm)1,394
Net Weight (kg)149
Fuel Tank Volume (L)15
Seat Height (mm)795 | 830
Suspension System
Frame SystemIron Pipe Frame
Tyre StructureRadial Tyre
Front Rim SizeMT : 3.5x17 | MT : 2.5x19
Rear Rim SizeMT : 5.0x17 | MT : 4.5x17
Front Tyre Size;Pressure110/70R17 | 110/80R19
Rear Tyre Size;Pressure160/60R17 | 160/60R17
Front Brake SizeABS Disc Brake 300mm x 4.5mm
Rear Brake SizeABS Disc Brake 230mm x 4.5mm
The ZT310-T engine has a high compression ratio of 12.5:1. A low fuel consumption can get a 26kW, 30N.m power output. A high compression ratio engine offers benefits such as fuel-saving, environmental protection and high performance.
