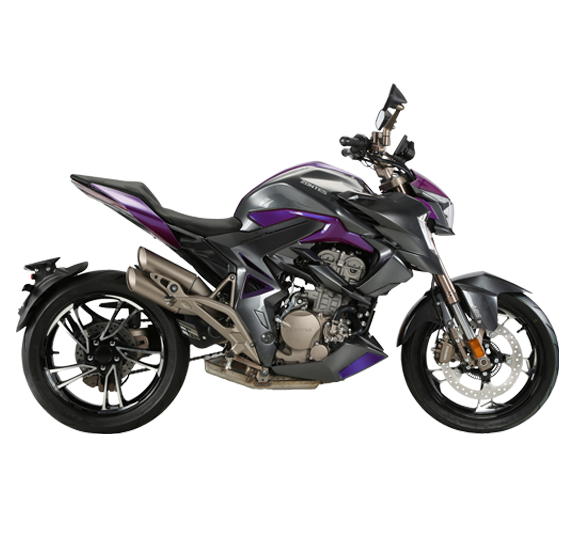

ZT310R1 makes every urban journey seamless and fun. This naked motorcycle packs a multitude of ride-enhancing features that enable you to easily navigate and zip through traffic.
Its low heights of only 807mm cater to Asians, especially Malaysians whose average heights are 164.7cm (male) and 153.3cm (female).
02
Intelligent Digital Meter with Full Liquid Crystal Display
Intelligent Digital Meter with Full Liquid Crystal Display
03
High Power Magneto
High Power Magneto
The power generation of the high power magneto is increased, the temperature rise is reduced, the service life is longer and the weight of the magneto rotor is reduced. Engine vibration and power output are boosted. The battery matched with the high power magneto has greater storage capacity.
04
Sliding Clutch
Sliding Clutch
05
EFI System
EFI System
Equivalent to a comprehensive optimisation of fuel economy and operating quality, this cutting-edge system integrates headlight control, fan control, as well as sports and fuel-saving mode.
06
Tyre Pressure Monitoring System
Tyre Pressure Monitoring System
In the event of abnormal tyre pressure, it quickly locks the front and rear wheels and flashes a warning prompt on the instrument. It effectively prevents flat tyres, increases safety, prevents tyre damage at low air pressure, extends tyre lifespan, reduces fuel consumption and maintains the best handling performance.
07
Single Swing Arm
Single Swing Arm
It is lighter in weight, stunning in design and easy to clean. Changing tyres is easy as well.
08
New Cushion Seat Leather
New Cushion Seat Leather
This soft higher-grade leather material elevates comfort during short and long-distance travels, whether when accelerating or braking.
09
Anti-scald Exhaust Pipe
Anti-scald Exhaust Pipe
Enjoy ease of mind with no worries about injuries from the high temperature of the exhaust pipe.
10
ABS
ABS
These are must-have accessories for long-distance travels and adrenaline seekers.
11
Dry Sump Engine
Dry Sump Engine
12
Keyless Remote Control System
Keyless Remote Control System
13
Fuel Saving & Sporting Dual Mode
Fuel Saving & Sporting Dual Mode
In the fuel-efficient mode, the system will automatically switch to sports mode as long as the engine speed is increased to 7,000rpm when needing to overtake.
14
Electronic Fuel Tank Lock
Electronic Fuel Tank Lock
Power System
Cylinder NumberSingle Cylinder
Camshaft SystemDouble-Top Camshaft (DOHC)
Bore X Stroke (mm)80 x 62
Cooling SystemLiquid Cooling
Compression Ratio12.5 : 1
Displacement (ml)312
Fuel injection systemDelphi Fuel Injection
Ignition SystemElectric Ignition
Maximum Power (kW/rpm)26 / 9,500
Maximum Torque (N.m/rpm)30 / 7,500
TransmissionConstant Mesh 6-section Transmission
ClutchWet Type Multi-Pieces
Fuel Consumption (L/km)3.2 / 100
Length (mm)2,051
Width (mm)765
Height (mm)1,116
Wheelbase (mm)1,390
Net Weight (kg)159
Fuel Tank Volume (L)15
Seat Height (mm)807
Suspension System
Frame SystemHigh Tensile Steel
Tyre StructureRadial Tyre
Front Rim SizeMT : 3.0x17
Rear Rim SizeMT : 4.5x17
Front Tyre Size;Pressure110/70R17
Rear Tyre Size;Pressure160/60R17
Front Brake SizeABS Disc Brake 300mm x 5mm
Rear Brake SizeABS Disc Brake 230mm x 4.5mm
The ZT310-R engine has a high compression ratio of 12.5:1. A low fuel consumption can get a 26kW, 30N.m power output. A high compression ratio engine offers benefits such as fuel-saving, environmental protection and high performance.
